Scansteel ScanEmul 175

The scansteel foodtech® scanEmul 175 is an emulsifier for production capacities ranging from 2000 – 7000 kg/hour. The scanEmul 175 is manufactured with the following motor options: 55 kW, 75 kW, or 90 kW. The scanEmul 175 is, as standard, supplied in two versions, pump fed or hopper fed. For hopper fed applications, the hopper is a stand-alone hopper with a single or a double screw to avoid bridge building of meat raw material pre-mixes.

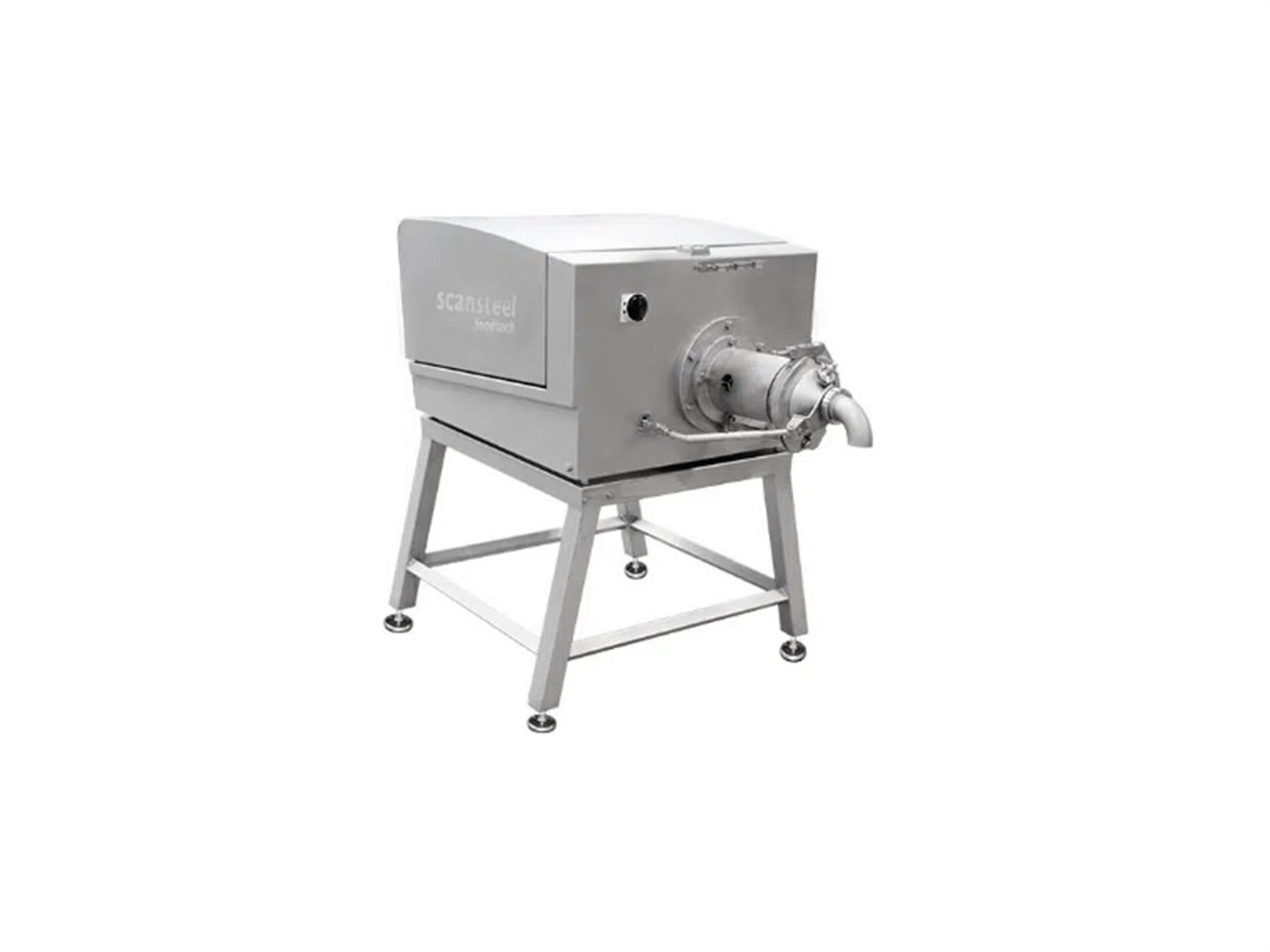

scanEmul 175 - Hopper fed

The scansteel foodtech® scanEmul 175 - Hopper fed emulsifier combines efficient and simple operation with high continuous performance, long durability, and low running and maintenance costs. The scanEmul 175 knife cassette system ensures the same uniform final particle size/emulsion quality for every production run, improve the level of fineness, optimize the protein extraction and increase production capacity. It therefore meets all the requirements for quality-oriented uniform production.

Ultra Flexible Knife Casette System

The scansteel foodtech® scanEmul 175 - Hopper fed knife cassette system has been designed so it can be assembled at the workshop by trained technicians. As such, the only thing the machine operators must do is to replace the knife cassette at agreed intervals.

scanEmul 175 - Pump fed

The scanEmul 175 shown below with a scansteel foodtech® ContiPump 250 with Twin Screw to avoid bridge building. Typically, the ContiPump 250 is positioned so either one or two mixers can discharge into the infeed hopper of the ContiPump 250.

Technical Specifications

Motor size

55 kW – 90 kW

Speed of knifes

Up to 3000 Rpm

Capacity range

2000 kg/hour – 7.000 kg/hour

Knife set

Single-, Double-, or Triple Knife set
