Scansteel Çift Helezonlu Kıyma Makineleri

Over the years, the scansteel foodtech A/S has conquered the position as THE supplier with the world’s widest grinder programme. scansteel foodtech A/S delivers, among other, the following double worm grinder programme:

scansteel foodtech® grinders are normally used for the following applications (but not limited hereto):

• Fresh meat raw material.
• Frozen blocks of meat raw material.
• Bones – beef, pork, poultry, fish, etc.
• Fat – all types and temperatures.

• Fish – all types.
• Fish offal.
• By-products

scanControl System

scansteel foodtech CombiGrind Series is equipped with our scanControl System. This system continuously monitors the frequency converters on the feeding/pre-grinding worm/auger and the grinding worm/auger for grinding section. If, for any reason, the grinding worm/auger is overloaded by the feeding/pre-grinding worm/auger, the scanControl System decreases the feeding speed until acceptable grinding conditions have been re-established. In extreme situations, the scanControl System actually reverses feeding/pre-grinding worm/auger.

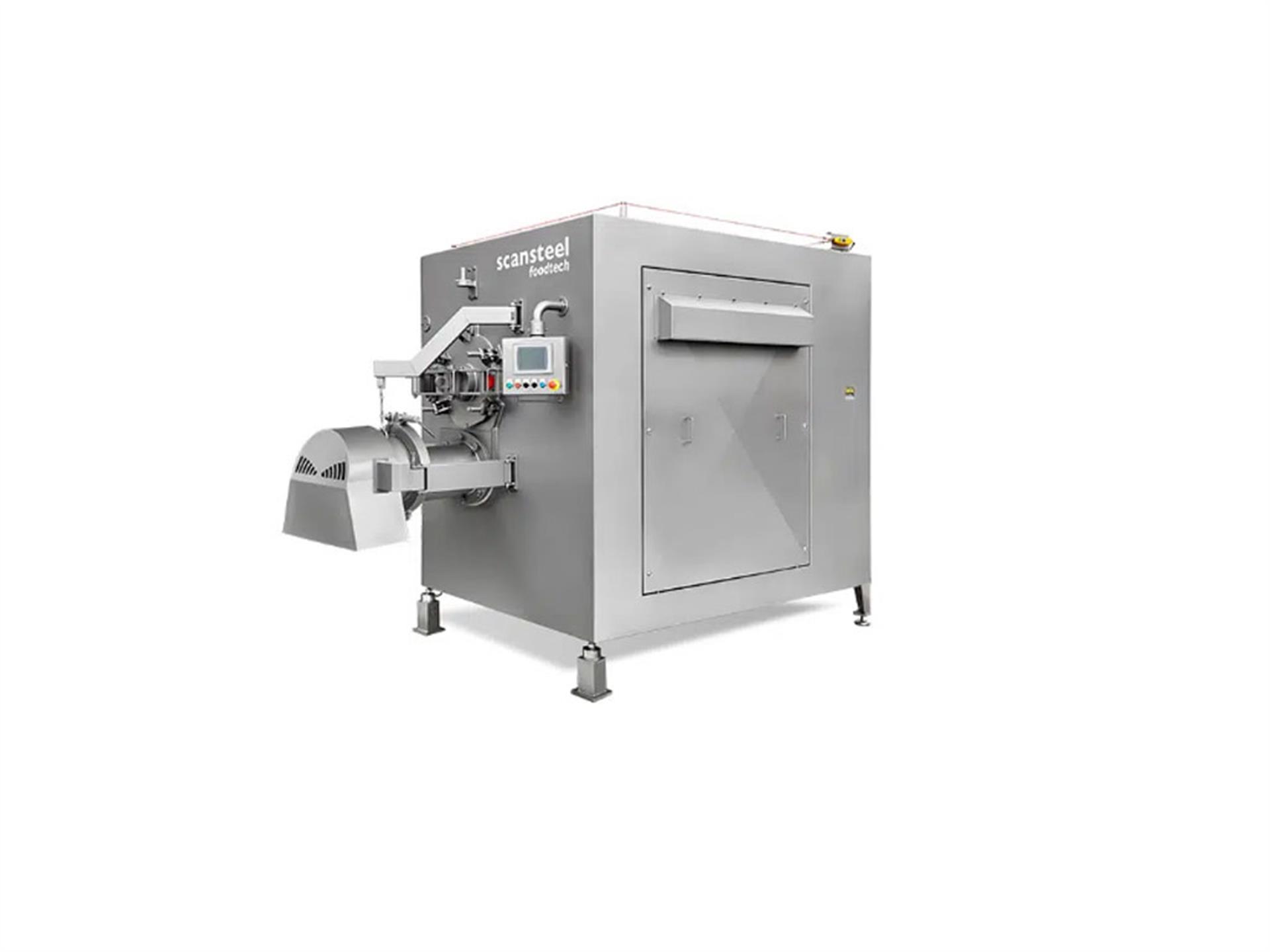

CombiGrind CG 225 / CG 300 / CG 300 Heavy Duty /
CG 400 - The Beast

These truly unique and universal grinders provide first-class grinding results, fully comparable with and even surpassing those of conventionally specialised grinders for fresh, tempered, or deep-frozen blocks without changing anything but the incoming raw material to be ground, coarsely or finely, as required.

High performance grinding within a wide capacity range is achieved through a low-tolerance, rigid design with smoothly shaped worms, hand-forged, welded, and ground superfine by skilled Danish craftsmen combined with the smooth surfaces of a high precision CNC milling lining

The electrical panel is embedded into the machine cabinet. The electrical panel can swing away to grant full access to the interior of the machine at maintenance, etc.

Easy and efficient cleaning of both feeding worm and grinding worm, which can both be easily disassembled and removed together with other grinding tools by means of the included tool trolley. Hole plates are easily removed and replaced during production with the included extraction tool, fitting the inner thread in the hole plate centre hole. The hygienic design provides easy access to and cleaning of all surfaces in contact with the product. The product area and drive components such as bearing etc. are completely separated by wide flushing channels with full visibility of and access to bearing sealings and drive clutches. This provides complete food safety as it is impossible for lubricants or bearing impurities to enter the product zone. Foldable safety fences prevent access to rotating parts during operation. All surfaces are either smoothly polished or ground and glass bead peened.
